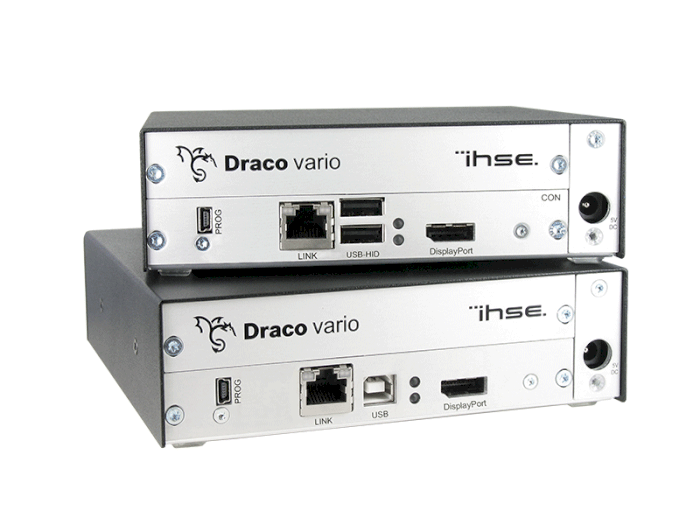

IHSE vario R474 KVM扩展器 R474-1SHC / L474-1SHC 光纤接收器

　　IHSE vario R474 KVM扩展器 R474-1SHC / L474-1SHC 光纤接收器

　　IHSE USA vario 474系列扩展器可通过Cat-X或光纤远距离传输DVI-I，DVI-D，USB-HID，USB 1.0 / 2.0，模拟或数字音频以及RS-232或RS-422控制信号光缆。IHSE 474系列专为可靠性和出色的超高分辨率图像性能而设计，采用IHSE的优化压缩技术，可将24位数字视频完美传输到2048x1152 @ 60Hz(包括1920x1200和1080p视频传输)。这些扩展器可提供几乎无损的图像质量。

　　IHSE 474系列是IHSE的Cat-X和光纤产品广泛的vario系列的一部分，并且与draco tera企业版和draco tera紧凑型KVM矩阵交换机产品兼容。它们可用于简单的点对点应用，或与任何企业或紧凑型矩阵交换机结合使用，以支持用于KVM或视频分配的更灵活的分配系统。因此，它们非常适合需要远程数字视频传输和高分辨率图形可靠显示的安装，包括医疗，教育，政府，航空，石油和石油以及后期生产中的培训，模拟，可视化以及命令和控制环境。

　　这些装置可以以完美的质量将DVI视频信号扩展到光纤上的10公里或cat-X电缆上的140m。图像显示无延迟，清晰清晰，分辨率完美。此外，vario系列474可以接受单独的USB 1.0 / 2.0，模拟或数字音频和RS-232数据。vario卡的音频选项包括高达96kHz的AES / EBU和S / PDIF。音频的设备连接选项包括支持Dolby Digital，DTS和PCM的mini-XLR，RCA或TOSLINK。

　　可选功能(如用于关键路径要求的冗余路径和冗余电源选件)使474系列成为最方便，最经济的解决方案。474系列有四种尺寸，可提供市场上最灵活的包装选择之一。从基本的2插槽机箱中，可以在4插槽，6插槽和21插槽的机架中提供相同的卡集。每个机架都包含用于100-220VAC或集成12VDC，24VDC或48VDC电源中的冗余电源的选项。

　　CPU Unit: Cat X

　　Product descriptionPart No.

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID L474-1SHC

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, VGA L474-1SHCV

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, analog audio L474-1SHCA

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, digital audio L474-1SHCD

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, redundant L474-1SHCR

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 4x HID L474-1S4C

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 4x HID, analog audio L474-1S4CA

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 4x HID, digital audio L474-1S4CD

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 HID + EMB L474-1SEC

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 HID + EMB, analog audio L474-1SECA

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 HID + EMB, digital audio L474-1SECD

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 HID + 2.0 L474-1STC

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 HID + 2.0, analog audio L474-1STCA

　　CPU-Unit, Cat X, 1 Monitor, S-Link, 2 HID + 2.0, digital audio L474-1STCD

　　CPU Unit: Fiber (1 Gbit/s)

　　Product descriptionPart No.

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, redundant L474-1SHSR

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID L474-1SHS

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, VGA L474-1SHSV

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, analog audio L474-1SHSA

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, digital audio L474-1SHSD

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 4x HID L474-1S4S

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 4x HID, analog audio L474-1S4SA

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 4x HID, digital audio L474-1S4SD

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 HID + EMB L474-1SES

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 HID + EMB, analog audio L474-1SESA

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 HID + EMB, digital audio L474-1SESD

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 HID + 2.0 L474-1STS

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 HID + 2.0, analog audio L474-1STSA

　　CPU-Unit, Fiber, 1 Monitor, S-Link, 2 HID + 2.0, digital audio L474-1STSD

　　CPU-Unit: Fiber XV (2.5 Gbit/s - eXtreme Velocity)

　　Product descriptionPart No.

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID L474-1SHX

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID, VGA L474-1SHXV

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID, analog audio L474-1SHXA

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID, digital audio L474-1SHXD

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 4x HID, analog audio L474-1S4XA

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 4x HID, digital audio L474-1S4XD

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + EMB L474-1SEX

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + EMB, analog audio L474-1SEXA

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + EMB, digital audio L474-1SEXD

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + 2.0 L474-1STX

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + 2.0, analog audio L474-1STXA

　　CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + 2.0, digital audio L474-1STXD

　　CON Unit: Cat X

　　Product descriptionPart No.

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 x HID R474-1SHC

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, analog audio R474-1SHCA

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, digital audio R474-1SHCD

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 x HID, redundant R474-1SHCR

　　CON-Unit, Cat X, 1 Monitor, S-Link, 4x HID R474-1S4C

　　CON-Unit, Cat X, 1 Monitor, S-Link, 4x HID, analog audio R474-1S4CA

　　CON-Unit, Cat X, 1 Monitor, S-Link, 4x HID, digital audio R474-1S4CD

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 HID + EMB R474-1SEC

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 HID + EMB, analog audio R474-1SECA

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 HID + EMB, digital audio R474-1SECD

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 HID + 2.0 R474-1STC

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 HID + 2.0, analog audio R474-1STCA

　　CON-Unit, Cat X, 1 Monitor, S-Link, 2 HID + 2.0, digital audio R474-1STCD

　　CON Unit: Fiber (1 Gbit/s)

　　Product descriptionPart No.

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, redundant R474-1SHSR

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 x HID R474-1SHS

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, analog audio R474-1SHSA

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 x HID, digital audio R474-1SHSD

　　CON-Unit, Fiber, 1 Monitor, S-Link, 4x HID R474-1S4S

　　CON-Unit, Fiber, 1 Monitor, S-Link, 4x HID, analog audio R474-1S4SA

　　CON-Unit, Fiber, 1 Monitor, S-Link, 4x HID, digital audio R474-1S4SD

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 HID + EMB R474-1SES

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 HID + EMB, analog audio R474-1SESA

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 HID + EMB, digital audio R474-1SESD

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 HID + 2.0 R474-1STS

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 HID + 2.0, analog audio R474-1STSA

　　CON-Unit, Fiber, 1 Monitor, S-Link, 2 HID + 2.0, digital audio R474-1STSD

　　CON Unit: Fiber XV (2.5 Gbit/s - eXtreme Velocity)

　　Product descriptionPart No.

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID, redundant R474-1SHXR

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID R474-1SHX

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID, analog audio R474-1SHXA

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID, digital audio R474-1SHXD

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 4x HID R474-1S4X

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 4x HID, analog audio R474-1S4XA

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 4x HID, digital audio R474-1S4XD

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + EMB R474-1SEX

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + EMB, analog audio R474-1SEXA

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + EMB, digital audio R474-1SEXD

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + 2.0 R474-1STX

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + 2.0, analog audio R474-1STXA

　　CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 HID + 2.0, digital audio R474-1STXD

　　Chassis & Blind Plates

　　Product descriptionPart No.

　　empty 2bay chassis 474-BODY2

　　empty 2bay chassis w/ internal PSU 474-BODY2N

　　empty 2bay chassis w/ red.prep. 474-BODY2R

　　empty 2bay chassis with 12V DC PSU 474-BODY2DC-12

　　empty 2bay chassis with 24V DC PSU 474-BODY2DC-24

　　empty 2bay chassis with 48V DC PSU 474-BODY2DC-48

　　empty 4bay chassis474-BODY4

　　empty 4bay chassis w/ red.prep. 474-BODY4R

　　empty 6bay chassis w/ red.prep. 474-BODY6R

　　empty 6bay chassis w/ backplane 474-BODY6BP

　　empty 6bay chassis w/ backplane (connectors on front side) 474-BODY6BPF

　　empty 6bay chassis w/ 12V DC PSU 474-BODY6DC-12

　　empty 6bay chassis w/ 24V DC PSU 474-BODY6DC-24

　　empty 6bay chassis w/ 48V DC PSU 474-BODY6DC-48

　　empty 19"/4RU 21bay chassis w/ red.prep. 474-BODY21/4U

　　Blind Plate 3RU/4HP 474-BLND1

　　Blind Plate 3RU/8HP 474-BLND2

　　Blind Plate 3RU/16HP 474-BLND4

　　19"/1U bracket for 2bay Draco vario Chassis w/ internal p.s.u. 474-2NRMK

　　19"/1U bracket for 2bay Draco vario Chassis 474-2RMK

　　19"/1U bracket for 4bay Draco vario Chassis 474-4RMK

　　19"/1U bracket for 6bay Draco vario Chassis 474-6RMK

　　Main Boards

　　Product descriptionPart No.

　　Motherboard CPU-Unit, Cat X, 1x Monitor, S-Link, 2 x HID, redundant L474-BSHCR

　　Motherboard CPU-Unit, Fiber, 1x Monitor, S-Link, 2 x HID, redundant L474-BSHSR

　　Motherboard CPU-Unit, Cat X, 1x Monitor, DVI-I S-Link, 2 x HID L474-BVHC

　　Motherboard CPU-Unit, Cat X, 1x Monitor, DVI-I S-Link, 2 x HID, redundant L474-BVHCR

　　Motherboard CPU-Unit, Fiber, 1x Monitor, DVI-I S-Link, 2 x HID L474-BVHS

　　Motherboard CPU-Unit, Fiber, 1x Monitor, DVI-I S-Link, 2 x HID, redundant L474-BVHSR

　　Motherboard CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID L474-BSHC

　　Motherboard CPU-Unit, Cat X, 1 Monitor, S-Link, 2 x HID,VGA L474-BSHCV

　　Motherboard CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID L474-BSHS

　　Motherboard CPU-Unit, Fiber, 1 Monitor, S-Link, 2 x HID,VGA L474-BSHSV

　　Motherboard CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID L474-BSHX

　　Motherboard CPU-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID,VGA L474-BSHXV

　　Motherboard CON-Unit, Cat X, 1x Monitor, S-Link, 2 x HID, redundant R474-BSHCR

　　Motherboard CON-Unit, Fiber, 1x Monitor, S-Link, 2 x HID, redundant R474-BSHSR

　　CON Unit, Cat X, 1 monitor DVI-I (VGA) Single Link and USB-HID R474-BVHC

　　CON Unit, Cat X, 1 monitor DVI-I (VGA) Single Link and USB-HID, redundant data transmission R474-BVHCR

　　CON Unit, fiber, 1 monitor DVI-I (VGA) Single Link and USB-HID R474-BVHS

　　CON Unit, fiber, 1 monitor DVI-I (VGA) Single Link and USB-HID, redundant data transmission R474-BVHSR

　　Motherboard CON-Unit, Cat X, 1 Monitor, S-Link, 2 x HID R474-BSHC

　　Motherboard CON-Unit, Fiber, 1 Monitor, S-Link, 2 x HID R474-BSHS

　　Motherboard CON-Unit, Fiber XV, 1 Monitor, S-Link, 2 x HID R474-BSHX

　　Upgrade Modules (Daughterboards)

　　Product descriptionPart No.

　　Upgrade USB-2.0/Cat5 L474-BXUC

　　Upgrade 2x USB-2.0 embedded L474-BXE

　　Upgrade 2x USB-2.0 embedded (flex speed) L474-BXE2

　　Upgrade 2x USB-HID L474-BXH

　　Upgrade analog Audio L474-BAX

　　Upgrade digital Audio L474-BDX

　　Upgrade analog Audio + 2x HID L474-BAH

　　Upgrade digital Audio + 2x HID L474-BDH

　　Upgrade analog Audio + 2x 2.0 embedded L474-BAE

　　Upgrade digital Audio + 2x embedded L474-BDE

　　Upgrade bidirektional digital Audio L474-BDD

　　Upgrade analog + digital Audio L474-BDA

　　Upgrade RS232/analogue audio + PS/2 keyboard and mouse L474-BAP

　　Upgrade analog Audio/RS422 + 2x 2.0 embedded L474-BSE

　　Upgrade balanced Audio L474-BBX

　　Upgrade analog Audio/RS422 L474-BSX

　　Upgrade USB-2.0/Fiber L474-BXUS

　　Upgrade RS232/analogue audio + PS/2 keyboard and mouse R474-BAP

　　Upgrade analog Audio/RS422 + 2x 2.0 embedded R474-BSE

　　Upgrade USB-2.0/Cat5 R474-BXUC

　　Upgrade 2x USB-2.0 embedded R474-BXE

　　Upgrade 2x USB-2.0 embedded (flex speed) R474-BXE2

　　Upgrade 2x USB-HID R474-BXH

　　Upgrade analog Audio R474-BAX

　　Upgrade digital Audio R474-BDX

　　Upgrade analog Audio + 2x HID R474-BAH

　　Upgrade digital Audio + 2x HID R474-BDH

　　Upgrade analog Audio + 2x 2.0 embedded R474-BAE

　　Upgrade digital Audio + 2x 2.0 embedded R474-BDE

　　Upgrade bidirektional digital Audio R474-BDD

　　Upgrade analog + digital Audio R474-BDA

　　Upgrade analog Audio/RS422 R474-BSX

　　Upgrade balanced Audio R474-BBX

　　Upgrade USB-2.0/Fiber R474-BXUS

　　19" Rack Mount Hardware & Mounting Plates

　　Product descriptionPart No.

　　Mounting strap for screws or snap-on 474-VPLATE

　　Mounting strap for screws or snap-on 474-VSNAP

　　19"/1U rack mount kit for Draco vario Chassis 474-VRMK

　　P.S.U. for 2bay Chassis 474-PSU2

　　P.S.U. for 4bay Chassis 474-PSU4

　　P.S.U. for 6bay Chassis 474-PSU6

　　P.S.U. for 21bay 19" Chassis 474-PSU21

　　Mounting bracket to mount by screws 474-BRACKET
