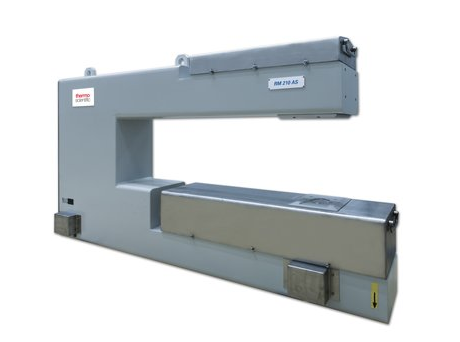

| Thermo Fisher 测厚仪 RM210AF Parts List 用于铝行业 | |
|
Thermo Scientific 铝轧机测厚仪包含以下产品：Thermo Scientific™ RM 210 AF 铝箔测厚仪，建议用于铝箔轧机；Thermo Scientific™ RM 210 AS 铝测厚仪，建议用于热精轧机、高速冷轧机、可逆式冷轧机、生产线。Thermo Scientific™ 铝轧机测厚仪可解决这个挑战。它利用全面的合金补偿算法，可在铝冷轧带和铝箔轧机的高速生产环境中进行准确的非接触式厚度测量，适合最特殊的合金和复合合金产品。铝在日常产品中非常常见，从汽车、建筑材料到饮料罐等。 但是铝生产工艺实际上非常复杂，需要使用高科技解决方案来确保成品材料符合精确的规格。
|
|
| Part-No. | Description |
| ER3210705 | Measuring Chamber |
| RM164517901 | Ionisation chamber Kr 15µm Ti |
| ER306010001 | Capton foil 230 x 230 |
| ER3010060 | PCB-Amplifier with 10 MOhm |
| ER3010061 | PCB-Amplifier with 1 MOhm |
| ER3010021 | PCB High Voltage Supply |
| ER3210010 | PCB-Base ADC modul |
| KT149542165 | Sealing Ring 5 (1m) |
| KT149510025 | O-Ring Sealing 117x4 |
| R16213204 | Protective Foil Carrier |
| R16213207 | Measuring NTC |
| ER3210003 | LP-ADC-Prozessor Modul |
| ER3210002 | PCB-Mil-ADA-ADC-Modul |
| RM168536050 | miniMODUL |
| KT150595316 | O-Ring 150x3 |
| RM164466988 | Ind. Proximity Switch IS3002-BPOG |
| KT164006373 | Motor with gear |
| RM168400105UP | High voltage MNX |
| ER3570904 | PCB-X-Ray MINI-10 |
| ER3570703 | Frame window copmplete |
| ER306010001 | Capton foil 230 x 230 |
| RM149509669 | O-Ring 56 x 2 |
| RM165700789 | X-ray tube 50/5 ABE WT |
| RM169000026 | Fan 24V |
| RM167500476 | NTC D23-10K3A1 |
| ER3570905 | Mill adapter X-Ray MINI |
| Thermo Fisher 测厚仪 RM 210ASF Processing Electronics | |
| KT163500111 | Fuse, G-Type T2 |
| KT163500134 | Fuse, G-Type T4 |
| RM160503424 | M1 CPU 400 |
| RM160503490 | M1 Memory flash 256MB/512MB |
| RM160503480 | M1 Power supply 24V 50W |
| RM160503432 | M1 Digital I/O 32/32/16 |
| RM160503460 | M1 4 RS232/422/485 |
| RM160503440 | M1 Analog in/out 12 bit |
| RM160503565 | Mini Combicon plug 16 |
| RM160503564 | Mini Combicon plug 19 |
| RM164436010 | Emergency Switch PNOZ X1 |
| RM168400097 | Power Supply 230V/24V,5A |
| KT164435030 | Relay 24V 1x21 |
| RM163507190 | Overvoltage protection (plug) |
| RM164402045 | Mains Filter |
| RM164435055 | Terminal Opto-Coupler |
| RM164221006 | Monitoring Unit |
| RM149377616 | Sensor Baro0meter 0-1,1bar |
| Option with motor drive | |
| RM168400049 | Operator panel frequ. Converter |
| RM168400056 | Frequency Converter 420 0,55KW |
| Thermo Fisher 测厚仪 RM210 C-Frame /30/45KV Source | |
| RM149070015 | Linear Bearing |
| ER2010818 | Vacuum NTC |
| KT149542165 | Sealing Ring 5 (1m) |
| RM164467503 | Water flow-switch |
| ER2100009 | C-frame window x-ray source side Alu |
| RM150571015 | O-RING 135 X 2 |
| ER210000103 | Sealing Ring |
| ER210000106 | Window 200µm AlMg3 |
| RM149127917 | Sealing gasket |
| Source Status Warning Lamp | |
| RM165205431 | Warning Lamp LED, red |
| RM165205433 | Warning Lamp LED, yellow |
| RM165205432 | Warning Lamp LED, green |
| RM165205420 | Warning Lamp, Connection part |
| RM165205435 | Warning Lamp LED, blue |
